Quick Factory Deliveries
In stock or nearly completed
At DC Brewer Machinery we are pleased to offer you products from some of the best machine builders in the World and offer quick factory deliveries for some products as shown here. These machines are either stock at the factory or nearly completed at the factory but with the possibility for you to further customize the machine and add certain desired options if not already installed.
$0 down, 90 day no payments and terms up to 72 months! OAC
Model: INSPIRER 5AX VG-1520H
Specifications:
X、Y、Z Stroke : 1500 / 2000 / 800 mm (X/Y/Z: Roller guideway)
Table Size : 1640 x 2140 mm
A-ax tilting angle : +95° ~ -120°
C-ax rotating angle : ±200°
Spindle Speed : Built-in 17,500rpm
Spindle Power : 26 / 30 kW (S1 / S6)
Spindle torque : 100 / 160 Nm (S1 / S6)
Spindle Taper : HSK-A63
X、Y、Z Rapid Feedrate : 40 / 40 / 40 M/min
ATC System : Drum type 24T
Controller: Siemens 840D SL / 10.4″ color LCD
Model: UM-350
Controller: FANUC 0i-MF
Turret : BT40 / 40-station
Specifications:
Spindle Speed: 12,000 rpm, spindle motor 7.5 / 11kW, Roller guideways, CTS, Rear chip exit
Model: HS-540K
Specifications:
Averex-Fanuc MPro I control
40 Tools Servo Driven ATC Magazine ( Expandable)
APC: 2 Pallets (Expandable)
BIG-PLUS® CAT-40 Spindle, 15,000 RPM, 37kW/50hp, 249Nm torque
| Standard Features |
| 100% Hand-Scraped on Contact Surfaces |
| Stepped Style Casting One Piece with Heavy Ribbed Base |
| Maximum Travels: XYZ 800/800/800mm |
| Maximum Work Envelope: Ø 800×1,000mm |
| Pressurized Oil-Air Lubricated for Spindle, Ball screws and Guide Ways |
| Thermal Stability: Chilled Spindle |
| Spindle Utilize BIG-PLUS® Design |
| THK® (IKO®) Roller Guide Ways |
| TSUBAKI® Ball screws |
| X/Y/Z Rapid Feed 60 M/min, 1G Acceleration |
| 1 Degree Index Table (Full 4th Rotary Table, 0.001° as optional) |
| 2APC unit w/500mm x 500mm pallets (Optional 400mm x 400mm pallets) |
| High Speed ATC, 1 sec Tool to Tool |
| Hydraulic Pallet Clamping System with Air Seal Detection |
| 30 Bar Through Spindle Coolant (Prepare for Optional 70Bar ) |
| Air Cutting Through Spindle |
| Air Blast Through Spindle During ATC |
| High Quality 3-axes Telescopic Way Covers |
| Overhead Automatic Pallet Wash System |
| Dual Chip Augers |
| Automatic Machine Power On / Off and Warm-up within 7days |
| Low Lubrication Alarm System |
| 3-color Machine Status Indicator |
| Floating Ball Type Level Detection for Coolant Tank |
| Oil Skimmer |
Model: UT-100Y
Controller: FANUC 0i-TF
Turret : BMT-55 power turret
Specifications: A2-5, 6inch chuck (30mm bar capacity) / Belt, Spindle motor: 5.5 / 7.5kW, Boxway, Compact loader
Model: UT-300SY
Controller: FANUC 0i-TF
Turret : VDI -40 power turret
Specifications:
Main Spindle: A2-8 (75mm bar capacity), motor: 15 / 18kW (belt type), 10″ chuck.
Sub Spindle: A2-5 (44mm bar capacity), motor: 7.5 / 11kW (Built in), 6″ chuck, Boxway
Model: HE-400
Specifications:
X、Y、Z Stroke : 600 / 500 / 500 mm
Spindle Speed : Built-in 10,000 rpm
Spindle Power : 7.5/11 kW (Low winding) / 11/18.5 (High winding)
Spindle Taper : BT-40
X、Y、Z Rapid Feedrate : 36 / 36 / 36 M/min
ATC System : Chain type Tool Arm magazine 40T
Pallet Size : 400 x 400 mm
Pallet min. index degree : 0.001° (AIR SYSTEM)
Controller: Mitsubishi M70A / 10.4″ color LCD

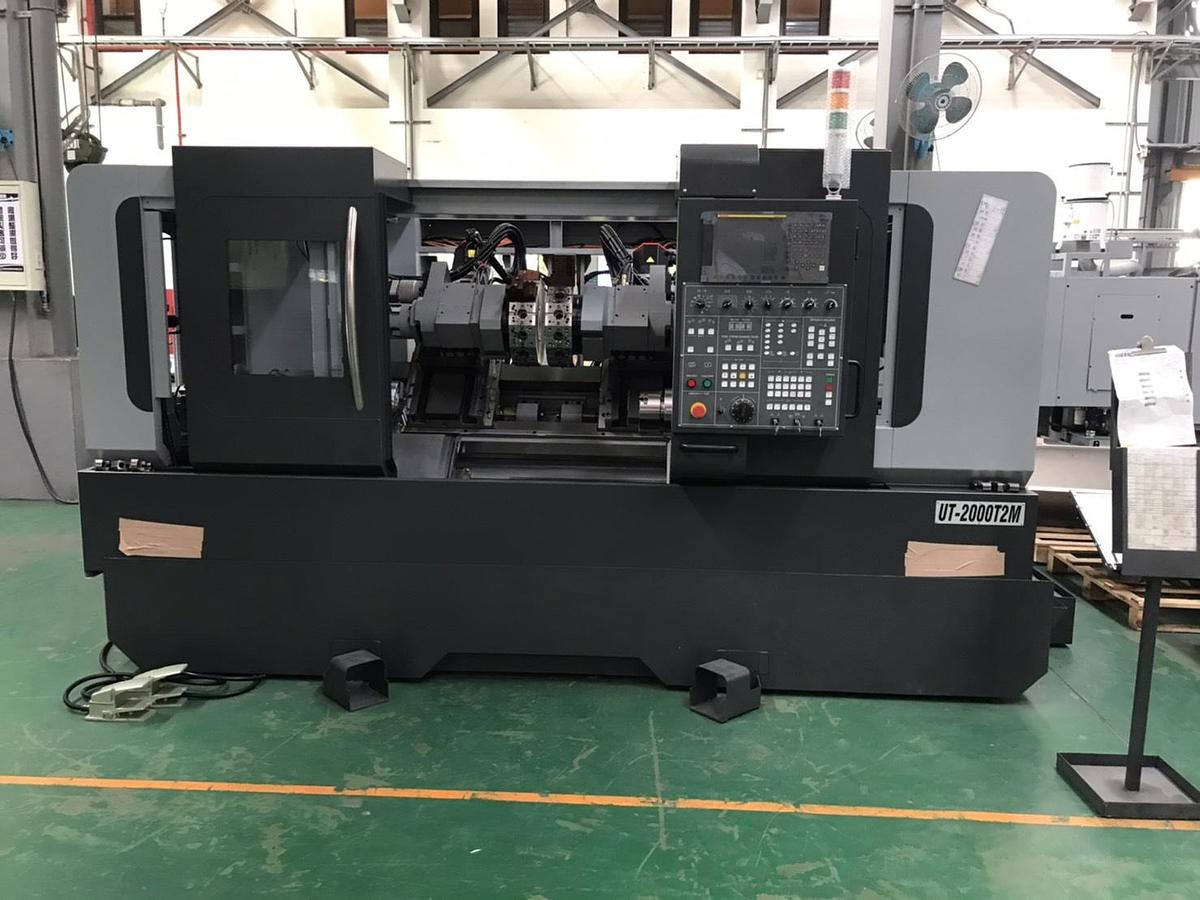

Model: UT-2000T2M
Controller: FANUC 0i-TF
Turret : BMT-55 power turret, both turrets, 12 stations
Specifications:
Main Spindle: A2-6 (52mm bar capacity), motor: 11 / 15kW (belt type), 8″ chuck.
Sub Spindle: A2-5 (44mm bar capacity), motor: 7.5 / 11kW (Built in), 6″ chuck, Box way
Model: HT-500, 2 machines available
Specifications:
X、Y、Z Stroke : 800 / 800 / 800 mm
Spindle Speed : 12,000 rpm (Built-in type)
Spindle Power : 22 / 30 Kw (cont. / 15min)
Spindle Taper : DIN-40 (Tools use BT-40)
X、Y、Z Rapid Feedrate : 36 / 36 / 36 M/min
ATC System : Arm type 60T
Pallet Size : 500 x 500 mm
Pallet min. index degree : 0.001°
Controller: Mitsubishi M80A / 10.4″ color LCD
Model: HE-400, 2 machines available
Specifications:
X、Y、Z Stroke : 600 / 500 / 500 mm
Spindle Speed : Built-in 12,000 rpm
Spindle Power : 7.5/11 kW (Low winding) / 11/18.5 (High winding)
Spindle Taper : BBT-40
X、Y、Z Rapid Feedrate : 36 / 36 / 36 M/min
ATC System : Chain type Tool Arm magazine 40T
Pallet Size : 400 x 400 mm
Pallet min. index degree : 0.001° (AIR SYSTEM)
Controller: Mitsubishi M80A / 8.4″ color LCD
Models Available:
RC-18CNC, 2 available

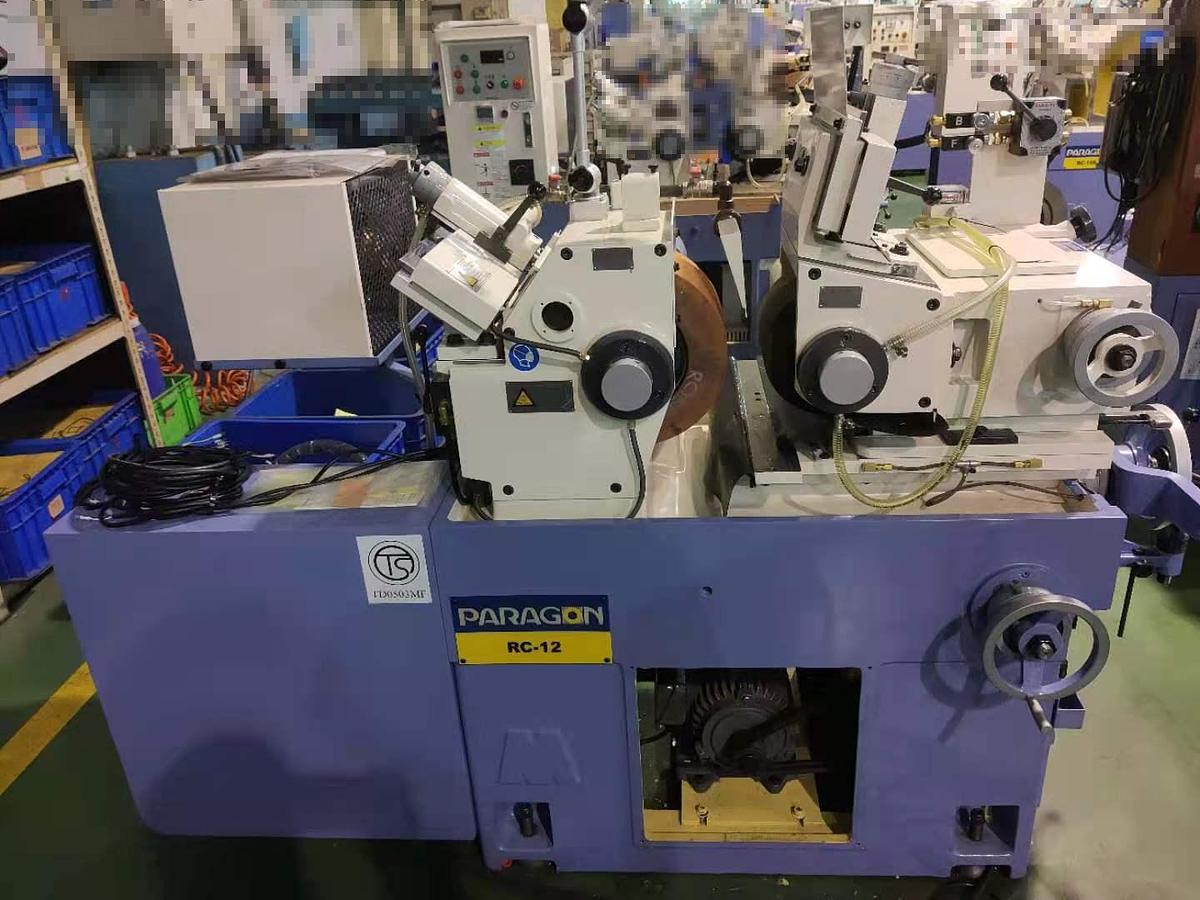

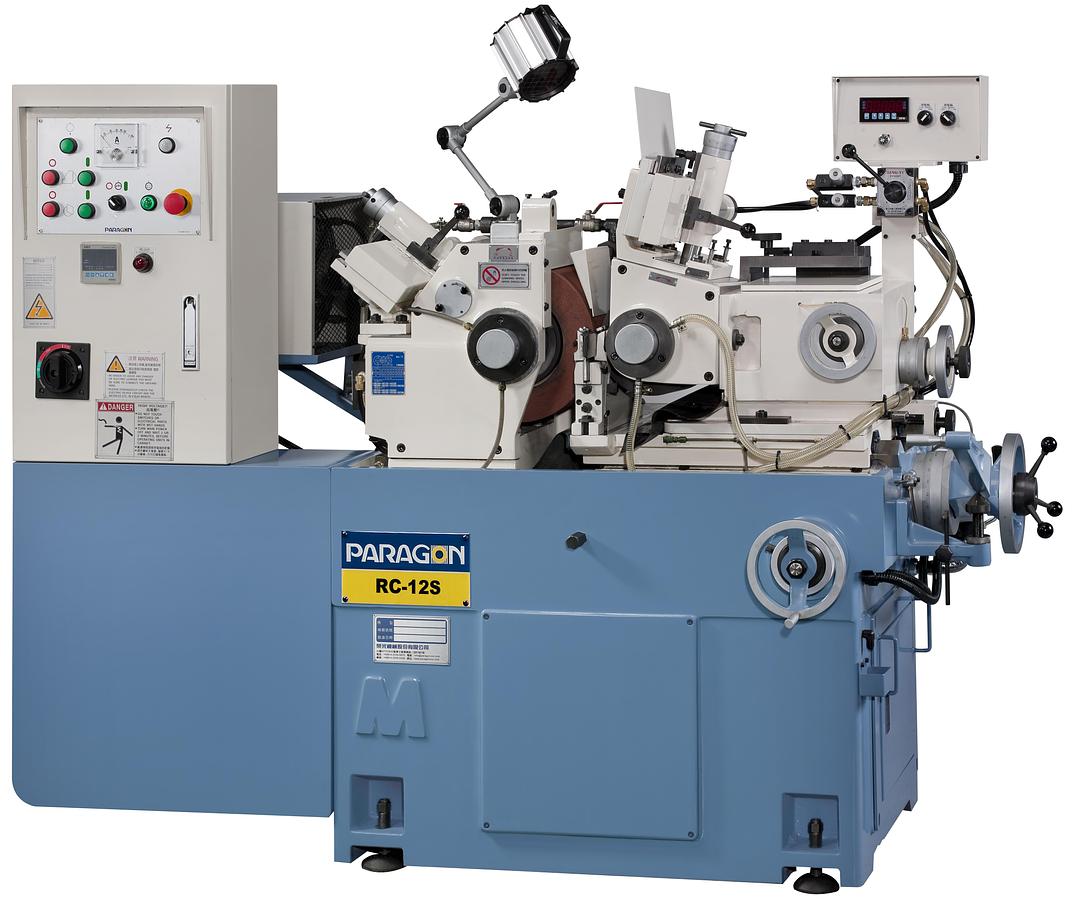

RC-12CNC, 1 available
RC-1812CNC, 1 available
Model:
GA-3535CNC
Model:
GU-35100CNC
Model:

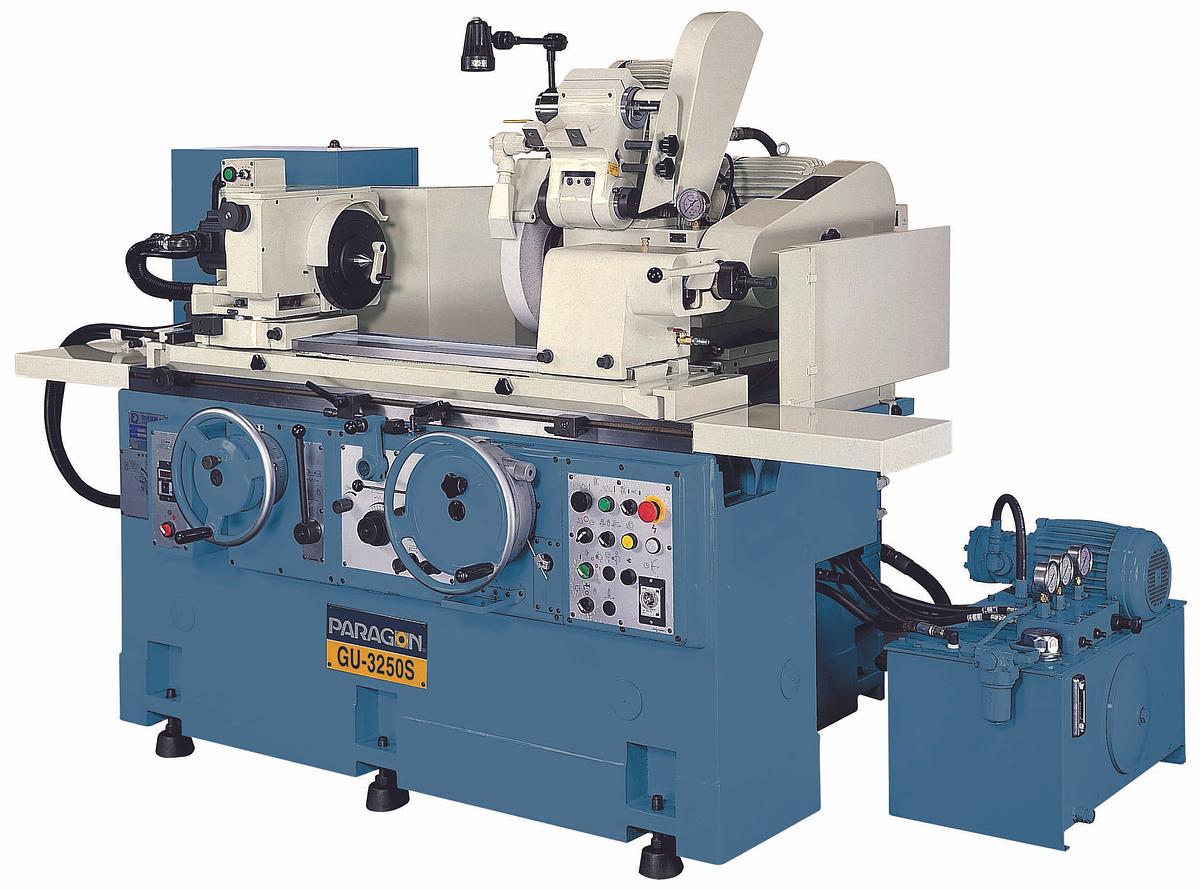

GU-3250S ready for mid August 2021
GU-3275S ready for mid August 2021
Model:

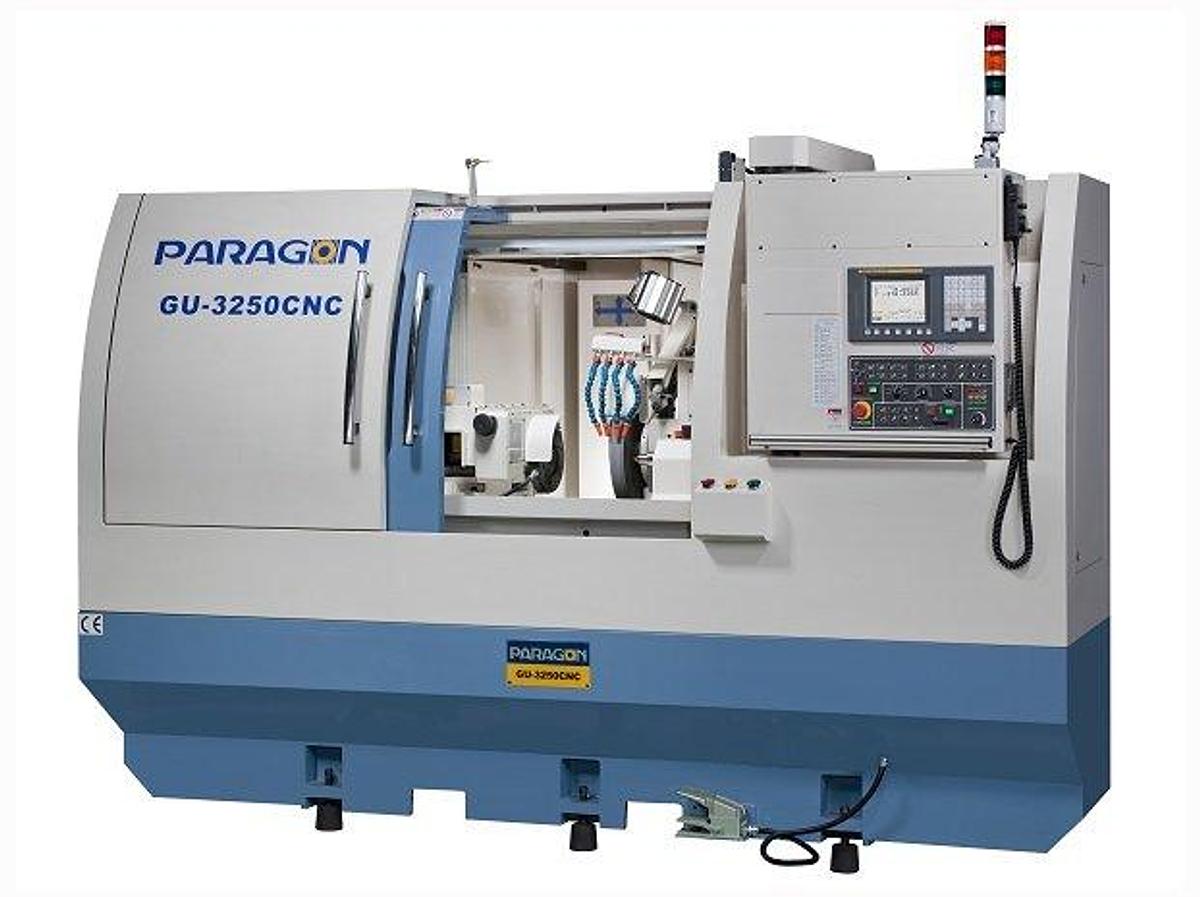

GU-3250CNC ready for mid August 2021
Model:
RIG-150NC1 ready for mid August 2021
Model:
RC12B ready for mid August 2021
